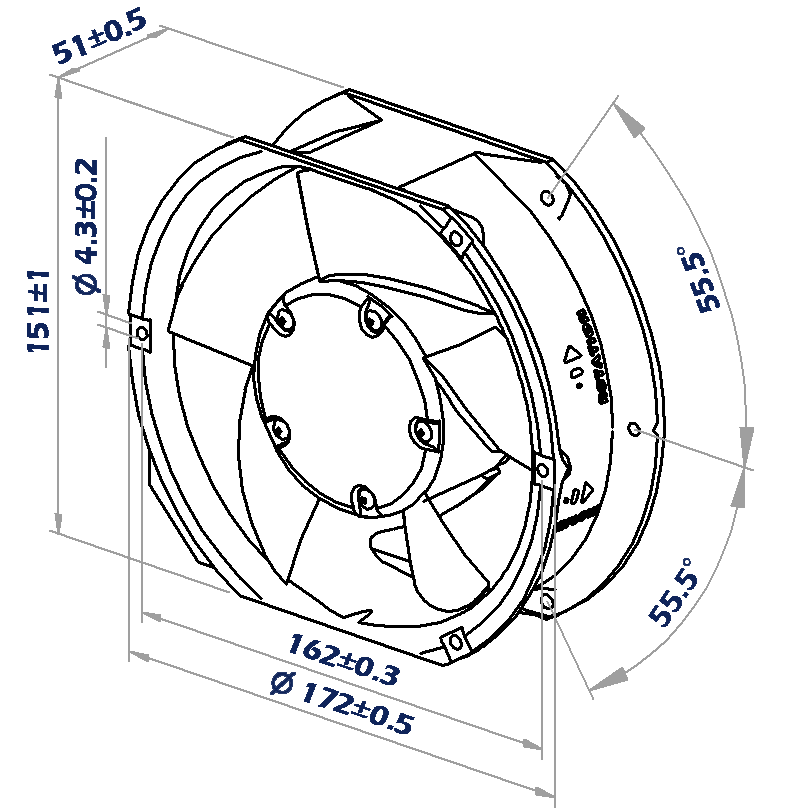

SIZE...................................................172x151x51 mm
MATERIAL...................................................Aluminum Housing【鋁合金框】, Steel Impeller【金屬葉片】
BEARINGS...................................................Maintenance-Free Ball Bearings【滾珠軸承】
MOTOR TYPE...................................................AC Induction Capacitor【電容式感應馬達】
CONNECTION...................................................Terminals or Lead wire【端子或導線連接】
DIELECTRIC STRENGTH...................................................1800 VAC for 1 Sec.【耐壓規格】
INSULATION RESISTANCE...................................................100 MΩ min.@500VDC【絕緣阻抗】
OPERATING TEMPERATURE................................................... -20°C to +70°C【操作環溫】
TYPE OF PROTECTION................................................... Insulation Class B, F【線圈等級】
INGRESS PROTECTION......................................IP54(optional IP56, IP67 rated)【防塵防水】
SAFETY......................................Thermally Protected(Auto Restart)【自動回復式溫度開關安全保護】
WEIGHT......................................1080g * 940 g
